The portable bike stand KET-LIFT4BIKE: Electric height adjustable, rotatable, mobile – what else is it capable of?

We have developed our portable bike stand KET-LIFT4BIKE in close collaboration with workshop professionals and experts. That is why it is designed to meet the demands and expectations of users down to the last detail. Due to its properties, KET-LIFT4BIKE is not only a must for workshops, service companies and rental stations, but also for professionals and passionate hobby mechanics, who like to do things themselves. Screwing and repairing within your own four walls has never been so easy. Our bike repair stand can hold even e-bikes or heavy bikes up to 50 kg without difficulty.

With electric height adjustment, repairs even on heavy e-bikes become child’s play.

With our electric bike stand, tasks such as changing tires, chain maintenance, brake bleeding or installing a sprocket on the engine can be done quickly, safely and effortlessly. Thanks to the special quick-change retaining claw mount, you can use different clamping systems or retaining claws such as Park-Tool, VAR, Tip-Top 3-point or Feedback, and thus clamp the e-bike, MTB or any other bike firmly, precisely and gently.

With the help of an industrial hand switch or a foot switch, the bike can be moved to the desired height (maximum lift: 1,638 mm) at a speed of 80 mm per second. The repair stand can be rotated flexibly by 360° and thus enables the bike to be worked on from any position even in the raised state.

Both the power connection (SCHUKO plug) as well as the compressed air connection are located on the top of the repair stand. With two separate 230V socketsdirectly at working height, two USB ports above and the compressed air connection, all connection options are always within reach.

A crossbar for hanging tools, a tool tray for utensils and PC, as well as a holder for socket wrenches are also on board. During the development of the KET-LIFT4BIKE, a lot of emphasis was also placed on safety. The collision safety shutdown with drive-back function ensures that movement is stopped immediately in the event of contact with the floor or with an obstacle, thus preventing damage to the frame.

  • Developed and produced in Furtwangen in the Black Forest
  • Suitable for bikes, e-bikes, MTBs and racing bikes up to 50 kg
  • Automatic safety shutdown with drive-back function in the event of a collision
  • High stability thanks to solid base plate as pedestal
  • Transport rollers enable mobile use of the repair stand
  • Individual, ergonomic work via stepless electrical height adjustment by hand switch or foot switch
  • Tool tray made of steel for laptop and small parts
  • Power connection (SCHUKO plug) and compressed air connection from above
  • Two separate 230V sockets and two USB ports at working height
  • Individually adaptable to customer needs
  • Maintenance-free

    Suitable for

    E-bikes, mountain bikes, racing bikes, other two-wheelers

    Maximum load capacity

    50 kg

    Adjustment speed

    80 mm/s

    Dimensions lifting column

    (l / w / h)
    351 mm / 230 mm / 2,170 mm

    Dimensions with base plate

    (l / w / h)
    760 mm / 745 mm / 2,185 mm

    Width with crossbar

    1,210 mm

    Working height

    270 to 1,908 mm

    Total adjustment height

    1,638 mm

    Dead weigh without base plate

    Approx. 41 kg

    Base plate

    Made of steel, 600 x 600 x 15 mm, 40 kg

    Operation

    Hand switch, foot switch

    Power connection

    Two separate 230V sockets and two USB ports at working height

    Safety

    Collision safety shutdown with drive-back function

    Mounting clamps

    Park-Tool, Var, Feedback, Tip-Top 3-point

    Characteristics

    Two USB ports, 360° swivel

    Portable

    Transport rollers enable mobile use

    Warranty

    2 years

    Swivel mechanism, to rotate the bike flexibly 360° on the portable bike stand

    Swivel mechanism

    Swivel mechanism

    Swivel mechanism, to rotate the bike flexibly 360° on the portable bike stand

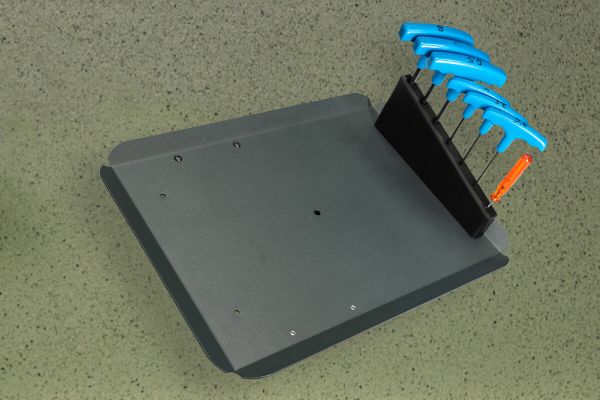

    Tool tray with a maximum load capacity of 5 kg

    Tool tray on the repair stand

    Tool tray on the repair stand

    Tool tray with a maximum load capacity of 5 kg

    Tool tray for utensils and PC attached to the portable bike stand

    Tool tray in detail

    Tool tray in detail

    Tool tray for utensils and PC attached to the portable bike stand

    Hand switch to electrically adjust the portable bike stand

    Hand switch

    Hand switch

    Hand switch to electrically adjust the portable bike stand

    Quick-change retaining claw mount on the portable bike stand for changing the mounting clamps

    Retaining claw mount

    Retaining claw mount

    Quick-change retaining claw mount on the portable bike stand for changing the mounting clamps

    Clamp feedback, for mounting bikes with frame diameter of 19 to 48 mm

    Mounting clamp feedback

    Mounting clamp feedback

    Clamp feedback, for mounting bikes with frame diameter of 19 to 48 mm

    Connections for power and compressed air on the top of the portable bike stand

    Connections for power and compressed air

    Connections for power and compressed air

    Connections for power and compressed air on the top of the portable bike stand

    Transport rollers enable mobile use of the portable bike repair stand

    Transport rollers

    Transport rollers

    Transport rollers enable mobile use of the portable bike repair stand

    Portable bike stand with two sockets and two USB ports

    Sockets and USB ports

    Sockets and USB ports

    Portable bike stand with two sockets and two USB ports

    Have the features of the KET-LIFT4BIKE convinced you? Then you only have to decide on a version and the repair stand will soon be in your workshop.
